High-Performance Wave Generation Solutions For Laboratory Testing
Modern hydraulic and marine research requires reliable equipment capable of producing accurate and repeatable wave conditions. Our standardized wave-making solutions are available in two configurations: push-plate type and flap-type. Both systems adopt a modular architecture that supports standalone operation or synchronized multi-unit deployment, making them suitable for pools and flumes of various dimensions.
Every Wave Generator undergoes comprehensive factory testing before shipment. Installation is straightforward - simply position, secure, and connect the units. The modular design minimizes commissioning time while providing excellent scalability for future expansion.
The push-plate design utilizes a classic reciprocating motion mechanism that offers dependable performance and convenient maintenance. It is capable of generating regular waves, irregular waves, and customized wave patterns for a wide range of laboratory applications.
Main Features
- Supports regular, irregular, and customized wave simulation
- Modular units can operate independently or in synchronized groups
- Adjustable wave height, wave period, and operating parameters
- Optimized drive system for long-duration continuous testing
- Advanced motion control ensures stable and uniform wave output
Key Benefits
- Suitable for small, medium, and large testing facilities
- Flexible expansion according to pool width and project requirements
- Factory-tested for rapid on-site deployment
- Durable structure with simplified maintenance procedures
- Custom configurations available for specialized applications
Typical Applications
Hydraulic engineering studies, ship model testing, environmental simulations, university laboratories, research institutes, and commercial testing facilities.

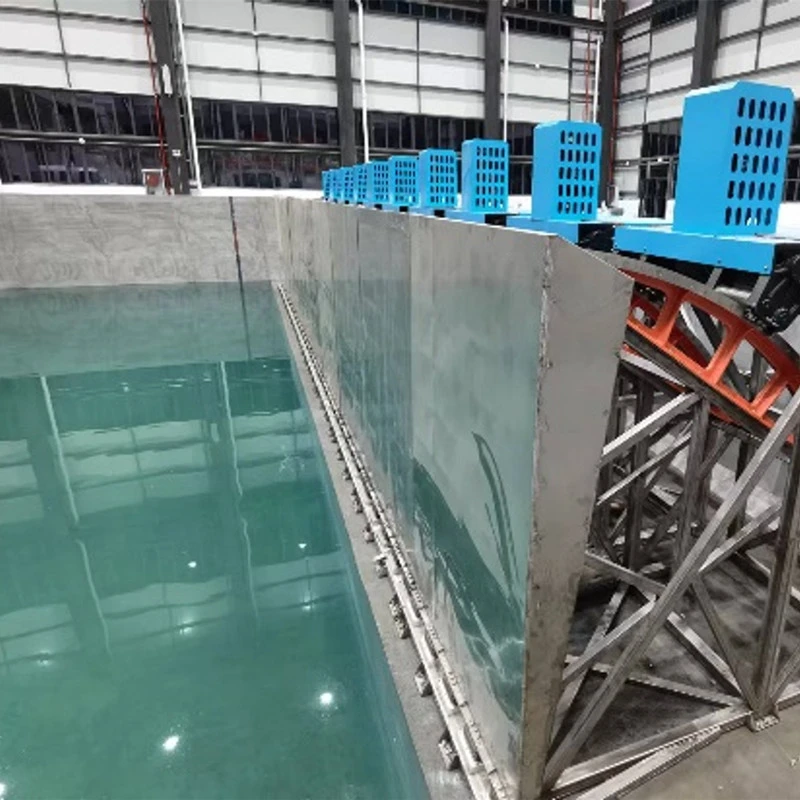

Flap-Type System
The flap-type configuration adopts a swinging motion structure designed for superior waveform accuracy and advanced hydrodynamic research. This solution is particularly suitable for projects requiring strict control of wave quality and complex wave generation.
The Wave Generator in this configuration can create regular waves, irregular waves, and sophisticated 3D wave conditions while maintaining exceptionally low waveform deviation.
Main Features
- High-precision wave generation capability
- Support for 3D wave simulation
- Adjustable wave height, period, and direction
- Modular networking for large-scale installations
- Optimized drive and cooling systems for continuous operation
Key Benefits
- Excellent compatibility with new and existing facilities
- Flexible layout planning based on available space
- Factory-verified synchronization performance
- Enhanced corrosion resistance for underwater components
- Simplified maintenance through centralized lubrication and enclosed protection
Typical Applications
Marine engineering model testing, coastal research programs, advanced fluid dynamics studies, ship hydrodynamics laboratories, and professional research centers.

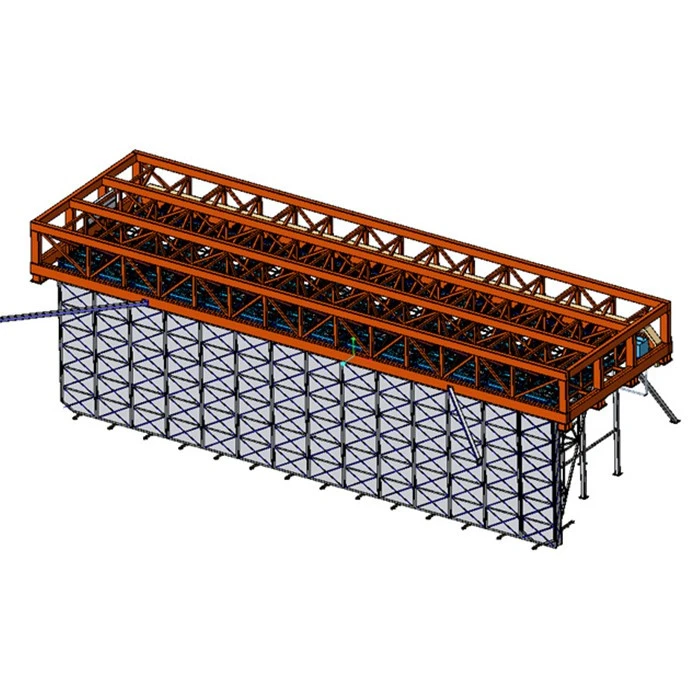

System Architecture
Both product series include a modular frame structure, servo drive system, motion control platform, protective assemblies, and synchronized control functions. Individual units can operate independently or be integrated into larger networks for coordinated performance.
Technical Support
We provide complete transportation protection, on-site installation guidance, comprehensive warranty coverage, lifetime technical support, and full technical documentation. Each Wave Generator can also be customized according to project requirements, including operating parameters, structural configurations, and system layouts.
Comparison Overview
|
Parameter |
Push-Plate Type |
Flap-Type |
|
Wave Types |
Regular, Irregular, Custom |
Regular, Irregular, 3D |
|
Operation Mode |
Single or Parallel |
Single or Parallel |
|
Wave Height |
Adjustable |
Adjustable |
|
Wave Period |
Adjustable |
Adjustable |
|
Wave Direction |
Standard |
Adjustable |
|
Corrosion Protection |
Standard |
Enhanced |
|
Recommended Use |
General Testing |
High-Precision Research |
