Motor Testing Equipment

The product achieves Class 0.5 measurement accuracy across key test parameters. It uses high-precision sensors, optical scales, and torque transmitters. The system maintains excellent linearity, repeatability, and low hysteresis. These metrics exceed industry standards. The equipment supports online calibration and individual instrument calibration. Test data remains stable and reliable for precision inspection requirements.

The Motor Testing Equipment uses a modular hardware and software design. All parts support customization based on user requirements. You can add or remove test items, change parameter limits, and adapt fixtures for different motor sizes. The system also has room for future expansion. This flexible design meets long-term testing needs for many motor types.

The tension-compression station uses ball screw transmission. This design has no elastic deformation like belt drives. It provides high transmission efficiency and precise positioning. These mechanical features ensure test repeatability and consistency across multiple runs.

The product runs on an industrial control computer. It shows test status and generates current and force curves in real time. All test data saves automatically to local storage. Users can query data locally or export it in CSV format. The system can connect to a printer for paper records. It also connects to management systems for full data traceability.

The product uses pneumatic quick-clamping fixtures for fast loading and unloading. One person can handle the entire process from loading to testing to unloading. The touchscreen panel and separate control buttons have clear function zones. New operators learn the system quickly. The equipment includes emergency stop and safety guards that meet industrial safety standards.

The product uses common brand components for sensors, electrical parts, and transmission parts. These parts are easy to find and replace. The equipment layout separates different functional zones. This design makes inspection, maintenance, and part replacement simple. Operating costs stay low over the equipment lifetime.

Each Motor Testing Equipment undergoes full system tuning and accuracy verification before delivery. It completes full-condition simulation tests at the factory. The equipment comes with complete technical documents and calibration certificates. After connection to power and air at the customer site, it is ready for immediate use. This approach shortens the deployment time significantly.

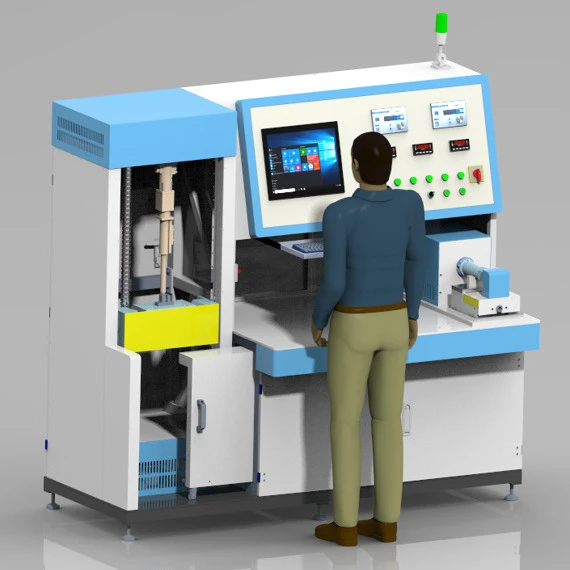

The product includes six main functional modules. These are the tension-compression test module, torque and speed test module, stroke detection module, electrical parameter test module, main control and software system, and integrated control console. Each module works independently and together with the others. They complete the full motor performance test together.
