The Air Vent Assembly Line is a semi-automatic flexible manufacturing system designed for automotive interior parts. This equipment is built for high-volume assembly and comprehensive testing of air vents, air conditioning dampers, and ventilation actuators. The production line uses a standardized modular architecture with multiple stations. It integrates parts assembly, automatic oil application, buckle pressing, intelligent screw driving, and comprehensive testing for air tightness, noise, and electrical performance. The system supports full non-standard customization based on product structure, production capacity, and facility layout. Stations can be added, removed, or rearranged flexibly. The product uses a human-machine collaborative operation model with quick-change tooling across all stations. This supports mixed production of multiple varieties in small batches.
Smart Fastening and Complete Data Traceability
The system is equipped with intelligent electric screwdrivers and multiple inspection systems. Torque data is monitored in real-time and fully traceable throughout the process. Defective parts are identified and rejected early in the production flow. Assembly consistency and finished product quality are strictly controlled. The control system includes reserved interfaces for MES connectivity. Production data can be uploaded in real-time to support digital factory management. Comprehensive safety protection mechanisms are also in place. The product uses standard, readily available components to ensure long-term stable operation. Every unit undergoes full simulation testing under various operating conditions before shipment. Third-party acceptance testing is supported.
Technical Specifications
|
Parameter |
Specification |
|
Operation Mode |
Human-machine collaborative |
|
Changeover Method |
Quick-change tooling with locating pins, aviation plugs, quick-connect air tubes |
|
Screw Driving |
Intelligent electric screwdrivers with torque monitoring |
|
Testing Capabilities |
Air tightness leak testing, noise testing, motor voltage/current testing, missing part detection |
|
System Integration |
MES interface ready, 5G network reservation |
|
Safety Features |
Safety light curtains, emergency stop buttons, interlock protection |
|
Customization |
Full non-standard customization based on product, process, capacity, layout |
|
Warranty |
Standard warranty, lifetime technical support |

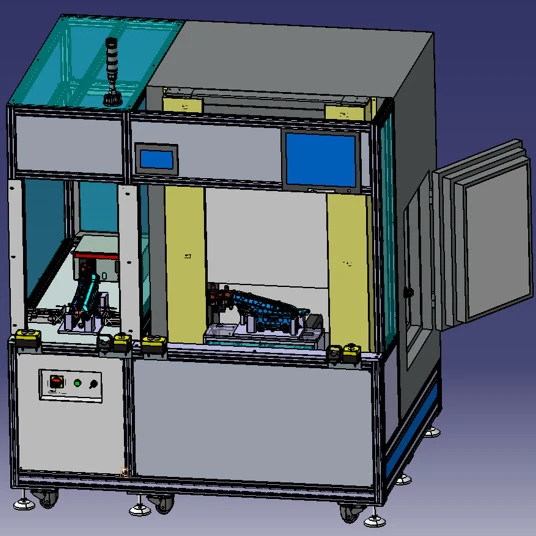

The Air Vent Assembly Line consists of multiple independent functional stations arranged in sequence. Each module can be independently adjusted, added, removed, or reconfigured. The six standard stations include the upper and lower housing and buckle assembly station, the inner blade assembly station with automatic oil application, the drive shaft assembly station, the housing and damper screw driving station with multi-axis intelligent screwdrivers, the motor and manual screw driving station, and the comprehensive inspection station with a sound-proof room, leak detection, electrical testing, and missing part sensors.
Complete Production Workflow
The standard process flow begins with manual loading. Then upper and lower housing, buckle, and spring nut assembly are performed. Inner blade assembly with automatic oil application comes next, followed by drive shaft component assembly. Housing and damper automatic screw driving is then completed. Motor assembly and manual screw driving follow. Finally, comprehensive testing for leakage, noise, electrical performance, and missing parts is performed. Finished products are unloaded while defective parts are sorted out separately. The Air Vent Assembly Line's process sequence and operations can be adjusted based on customer requirements. This equipment is ideal for automotive OEMs, Tier 1 suppliers, and interior component manufacturers.
